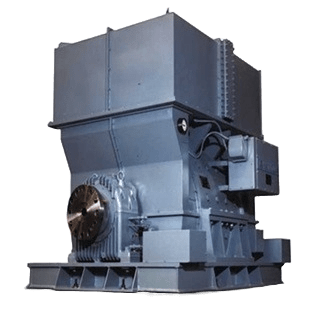

TECO Wound Rotor Motors are custom designed to each customer’s specific application. Because of their design versatility and high operating efficiences, TECO Wound Rotor Motors are the logical choice for read more…
|
Product Overview
|
|
| Output | 250 up to 15,000kW |
| Number of Poles: | 4 to 12 |
| Cooling method: | TEAAC & TEFC |
| Degree of Protection: | IP54 to IP65 |
| Frames: | 355 up to 1250 |
| Ambient temperature: | 40 °C |
| Elevation: | 1000m above sea level |
| Service factor: | 1.0 @ 40 deg C ambient |
| Mounting: | IM1001 |
| Voltages: | Up to 13,800V |
| Insulation Class: | “F” insulation (ΔT = 80K) |
| Continuous duty: | S1 |
| Design: | N |
| Thermal protection: | As per customer specification |
| Bearings: | Anti-friction Bearings , Sleeve bearings |
| Frame Material: | Fabricated Steeel |
| Color: | As per customer specification |
| Altitude above 1000 m (on request) |
| Aluminum, copper or brass rotor |
| Ambient temperature above 40 °C |
| Base: rail, sliding base, extended feet, rebuilt feet, anchorage plate |
| Bearing thermometer with gauge with/without contacts |
| Brush Lifting System |
| Cable gland in the terminal box entrance |
| Class of insulation: H |
| Cooling: Forced ventilated, Air-to-water heat exchanger |
| CT for differential and integral protection |
| Electrically insulated bearing |
| Encoder |
| Grounding brush on drive end bearing |
| Independent hydraulic oil circulation system for sleeve bearing |
| Mountings: Vertical, Horizontal, Foot and Flange, Flange, NEMA Standard |
| Noise suppressor in the air inlet and outlet |
| Non-reversion ratchet |
| Multiple accessory terminal boxes |
| Power factor correction capacitors |
| Protection against voltage surge: Lighting arrestors and Capacitors |
| Service Factor: 1.15 |
| Shaft: Special dimensions, double shaft end, tapered, hollow, special steel |
| Signal transducer |
| Sleeve bearing |
| Special balance |
| Special bearing (overdesigned) for axial or radial thrust |
| Special painting |
| Steel welded terminal box in different sizes, based on internal available space |
| Temperature detector: Thermistor (PTC or NTC) |
| Temperature detector: Thermostat (Bimetallic) |
| Two energized power terminal boxes |
| Vibration detector |
No software downloads.
|
