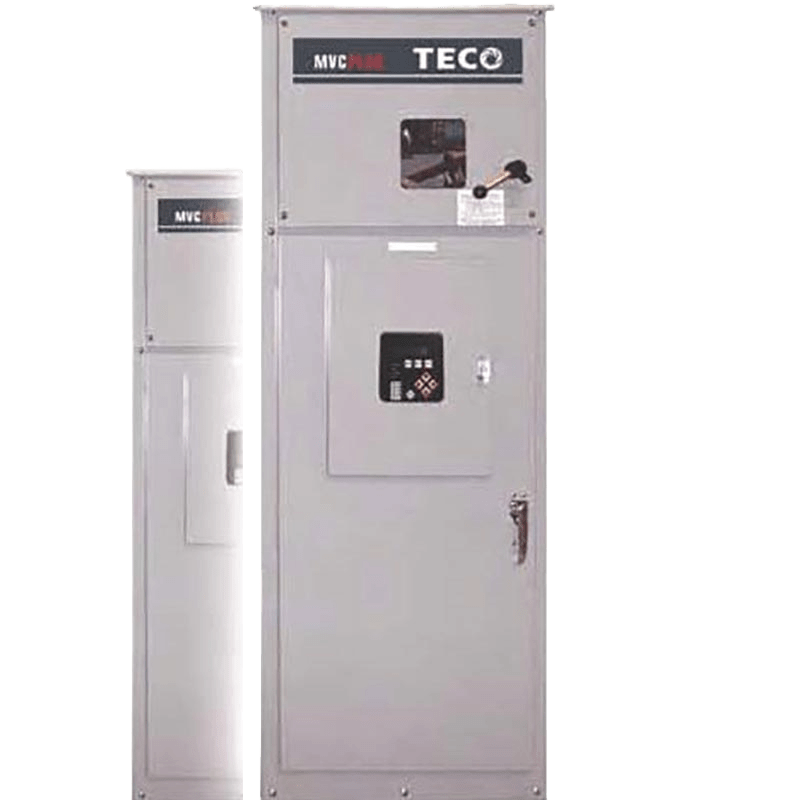

TECO MVC3 Soft Starter

• Power & Voltage Capabilities
• Power Range: 200~600A
• Voltage Range: 2.3~15kV
• Built for Durability and Efficiency
• Heavy Load Handling: Engineered to operate under heavy load conditions.
• Reactor-less Operation: Ensures smooth functioning in any power condition.
• Advanced Motor Protection Relay: Programmable for precise control, ensuring safety and efficiency.
• Fiber Optically Isolated Compartment: Up to 110kV BIL rating for enhanced safety and reliability.
• Built-in 120V Control Power Transformer: For accurate voltage and current metering.
• Load-break / fault-make rated disconnect switch with door safety interlocking.
• Visible Grounding Bar & Safety Interlocks: For safe and secure operation.
• Coordinated motor fuses with blown fuse indicators.
• Line isolation vacuum contactor.
• Fully rated bypass contactor for increased thermal capacity and optional across-the-line motor.
• Heavy duty SCR stack assemblies with ring transformer isolation for reliable SCR gate firing.
• RTD Option accepts up to 12 RTD inputs.
• Zero sequence ground fault protection option.
• Top entry, bottom exit with room for stress cones. Removable entry plates for easy connections.
• NEMA 12 gasketed enclosure (NEMA 3R optional).

TECO-MVCPLUS-0309-01
