TECO IE3 Flameproof (Exd)

TECO IE3 Flameproof (Exd)

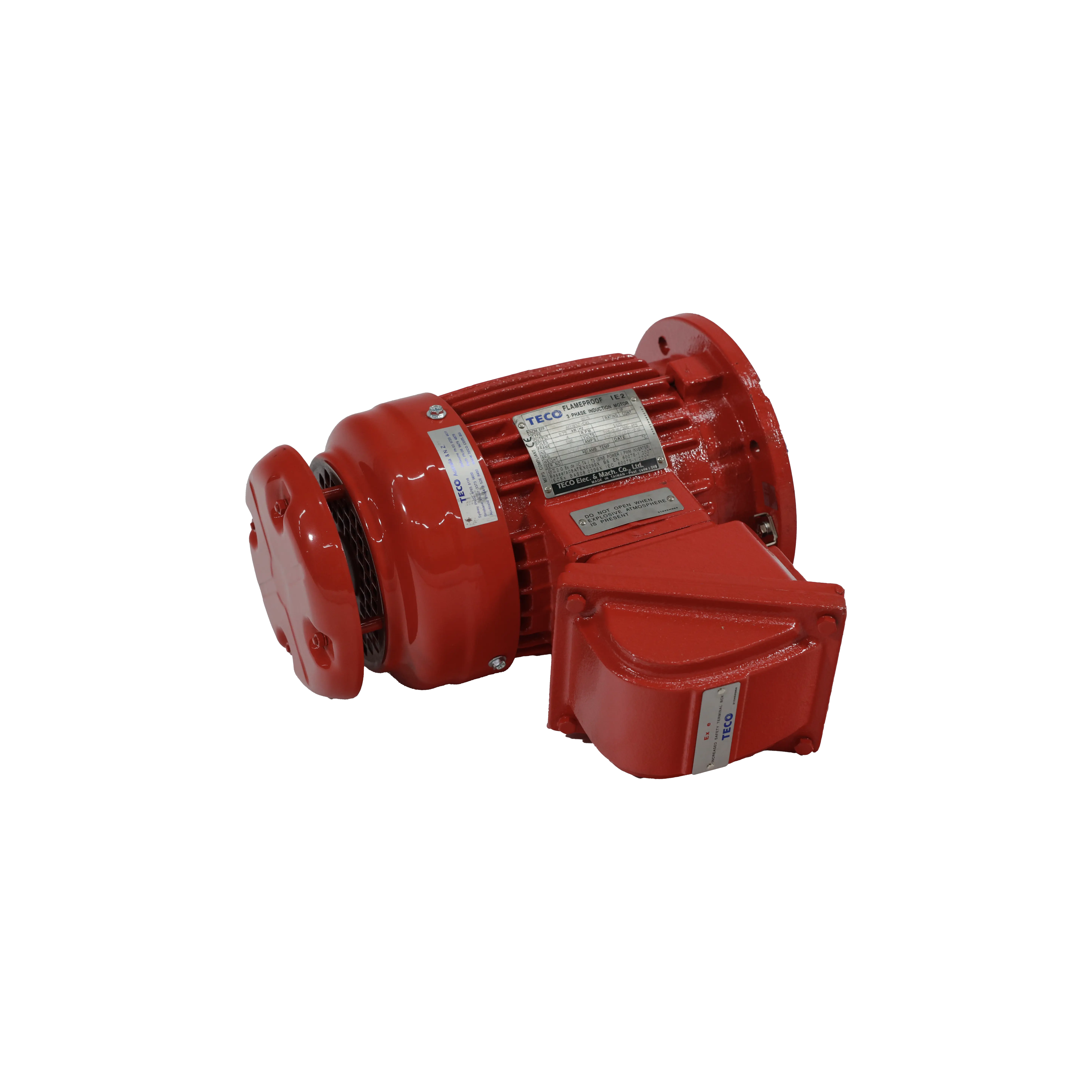

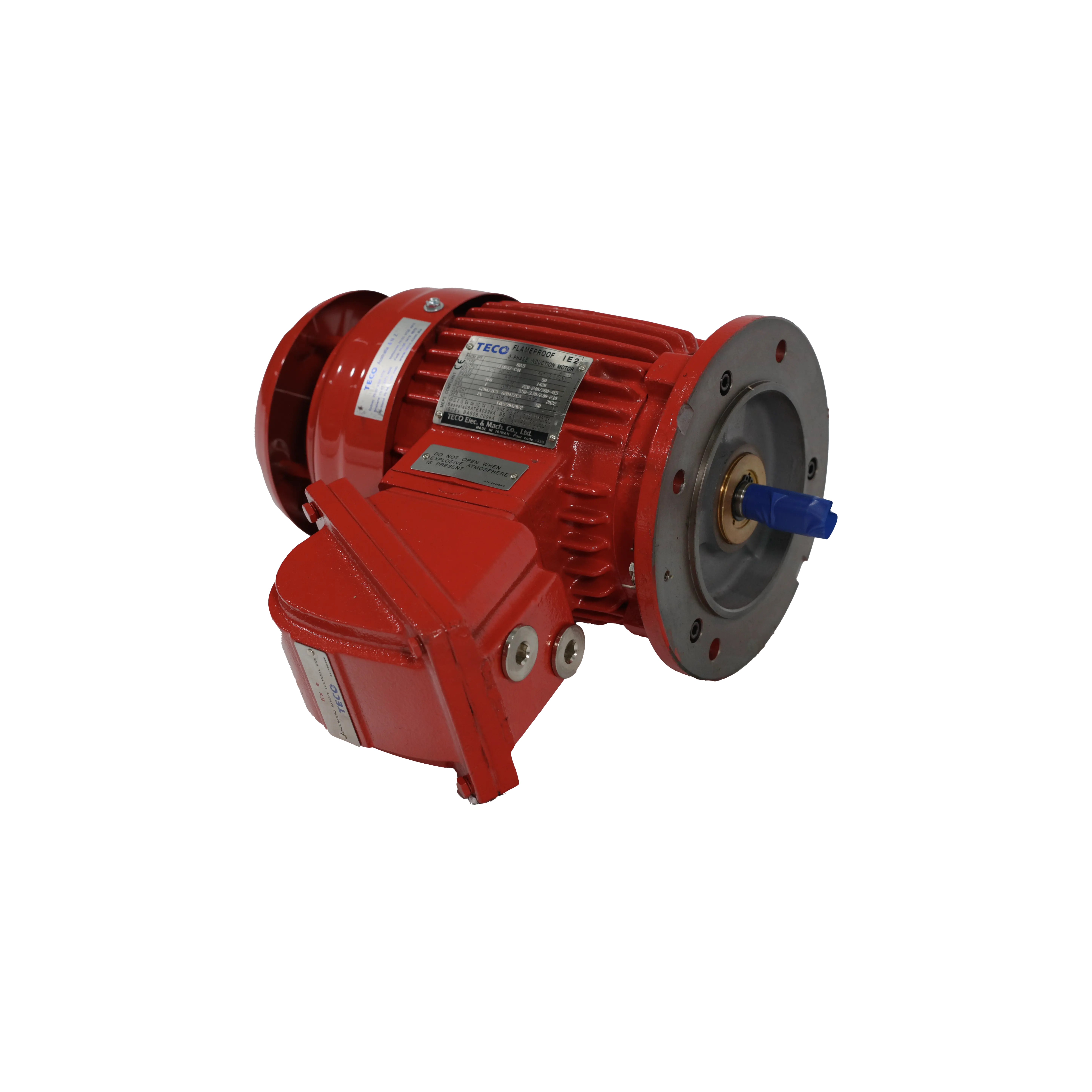

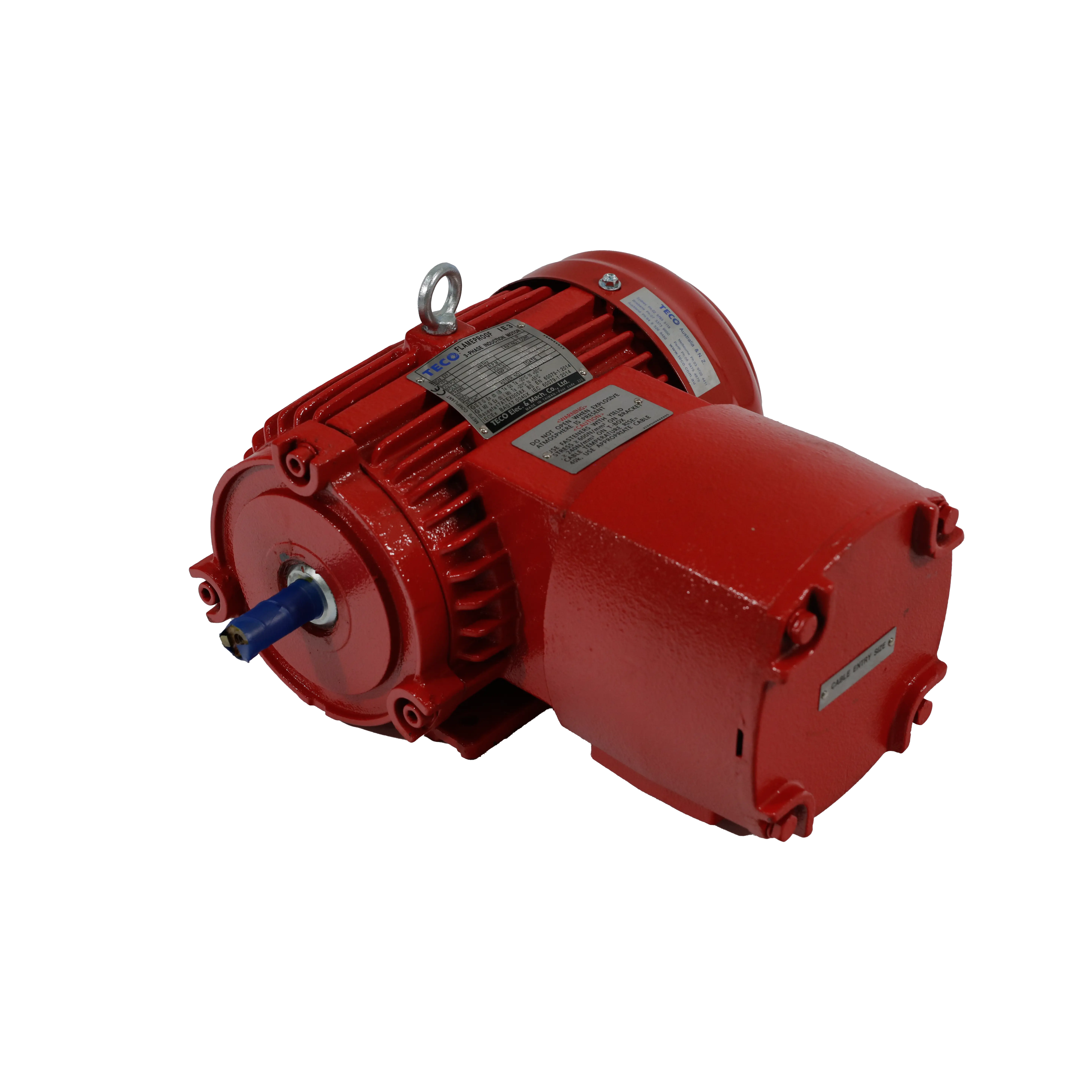

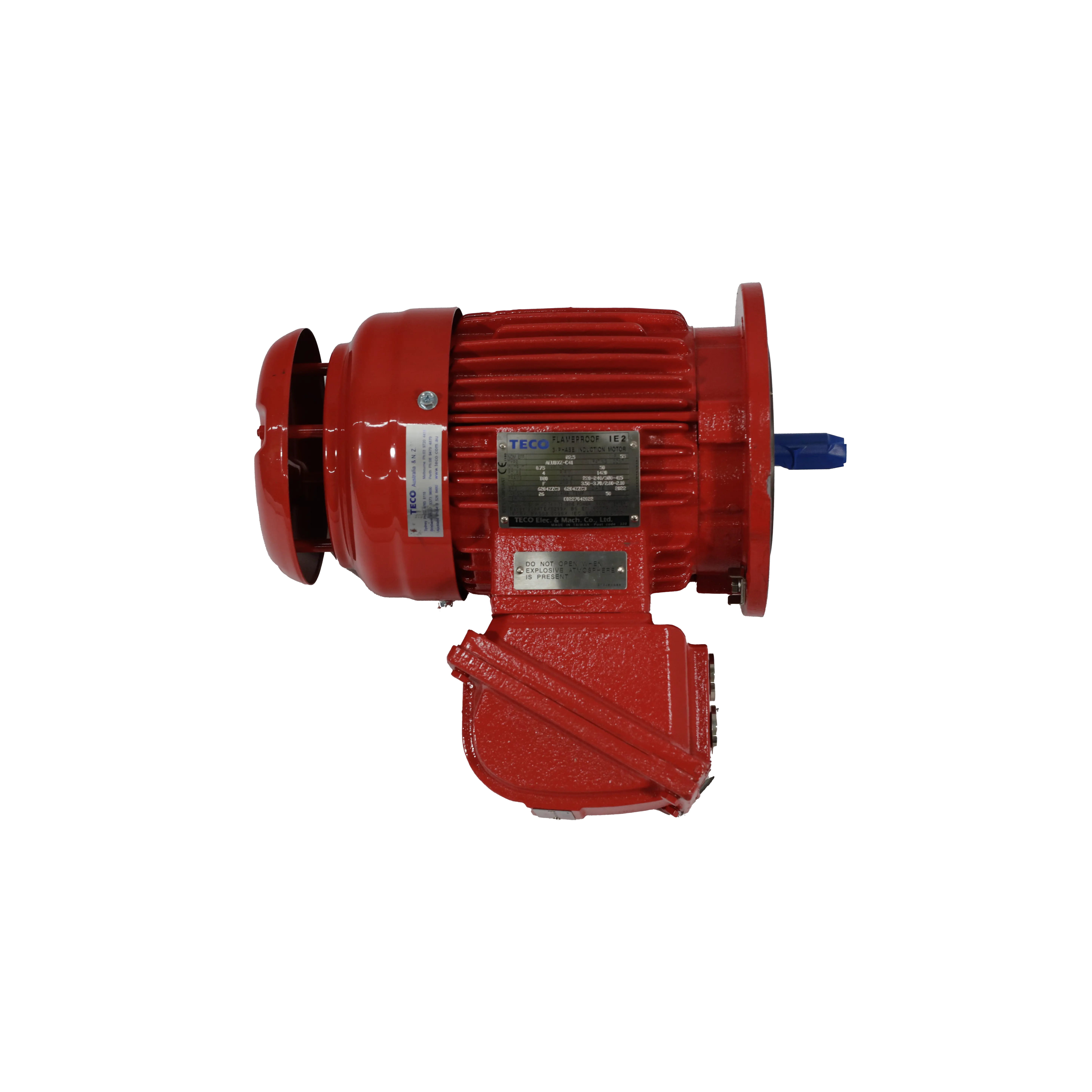

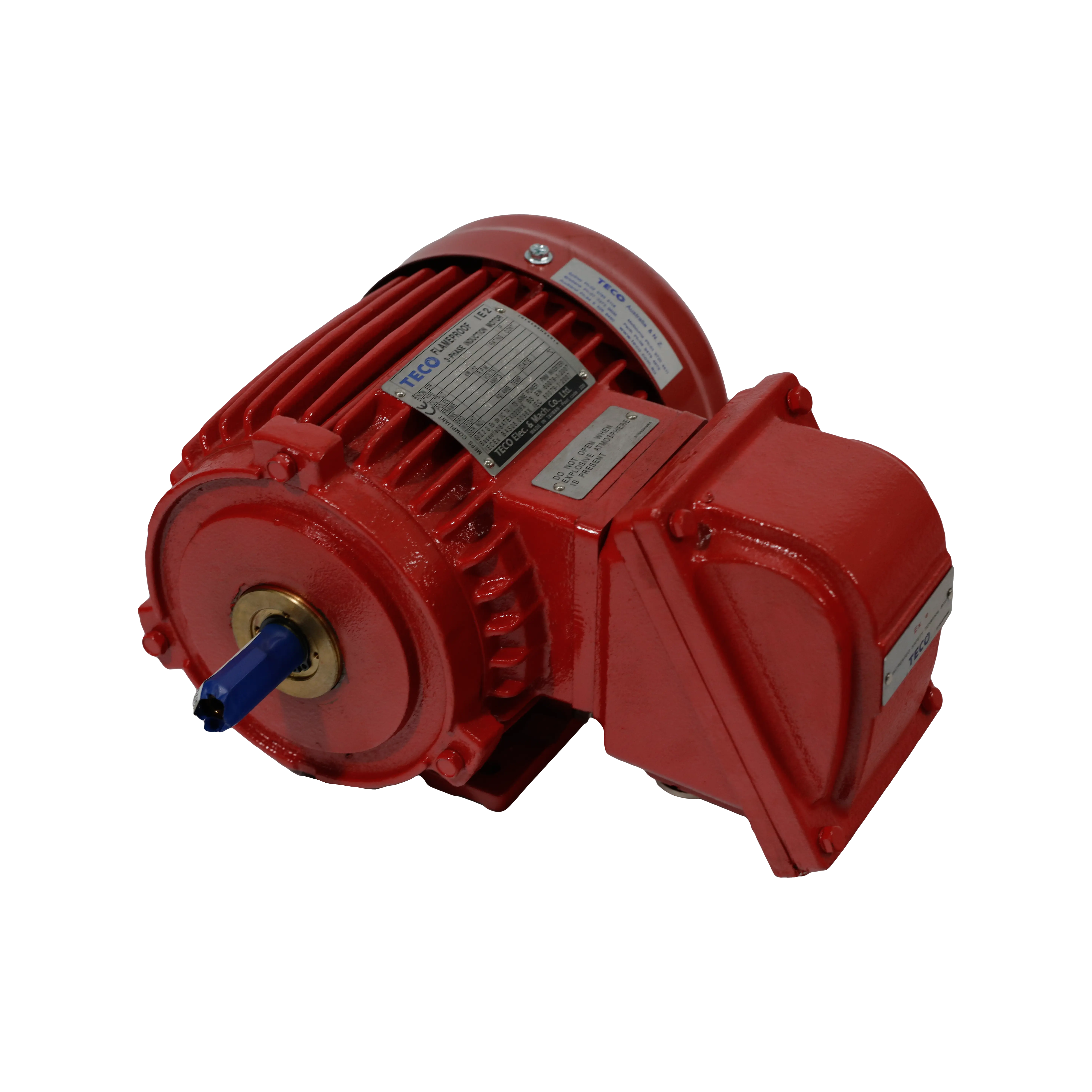

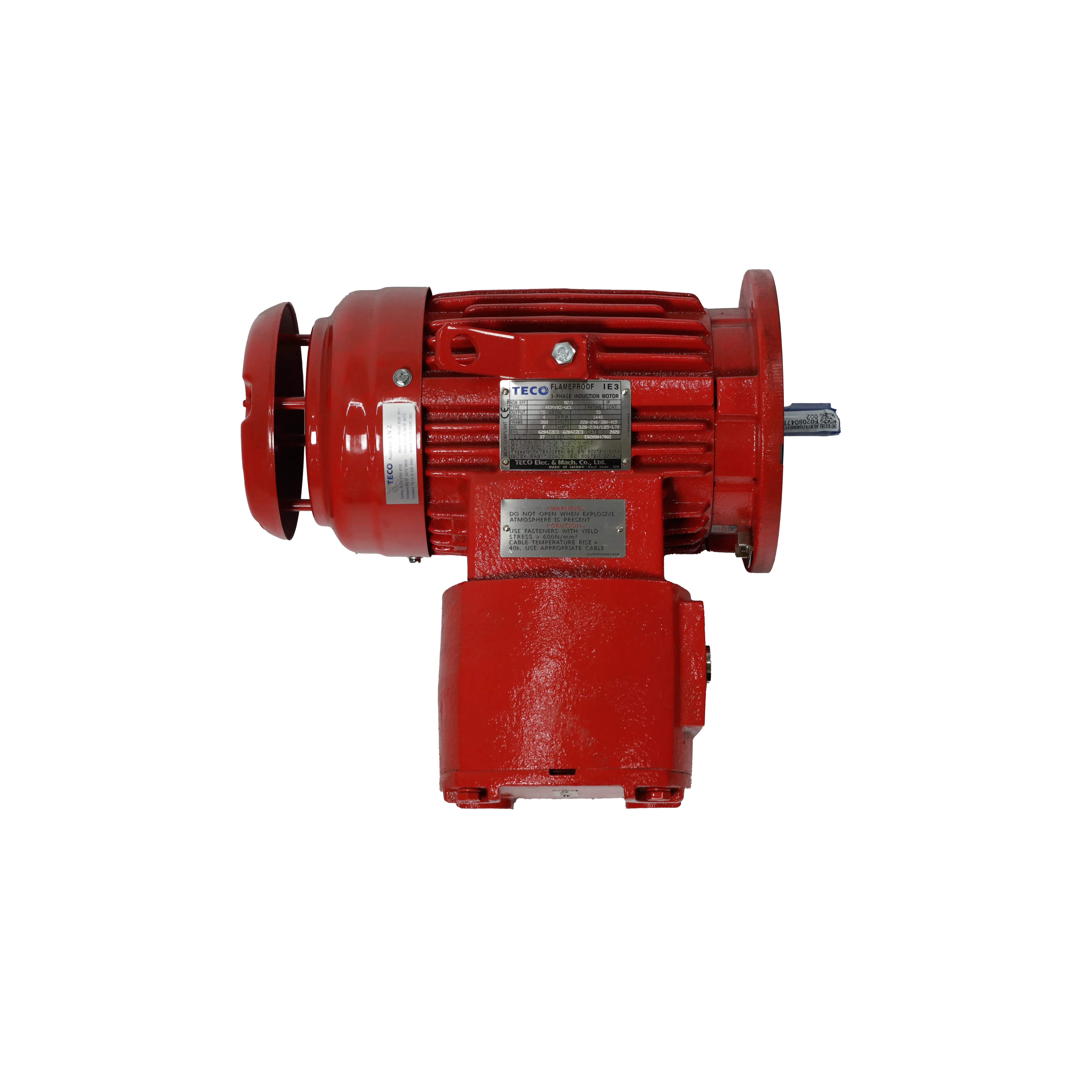

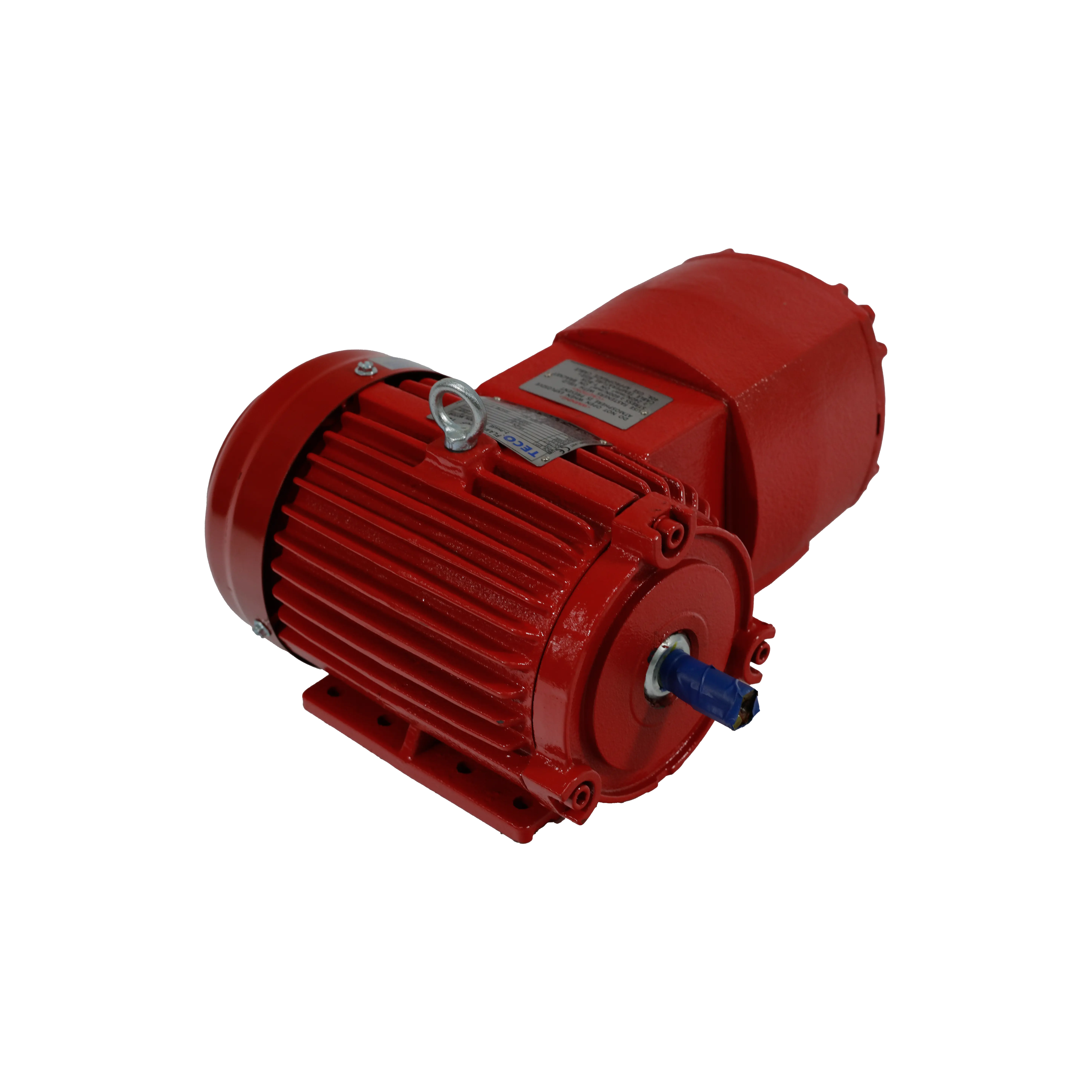

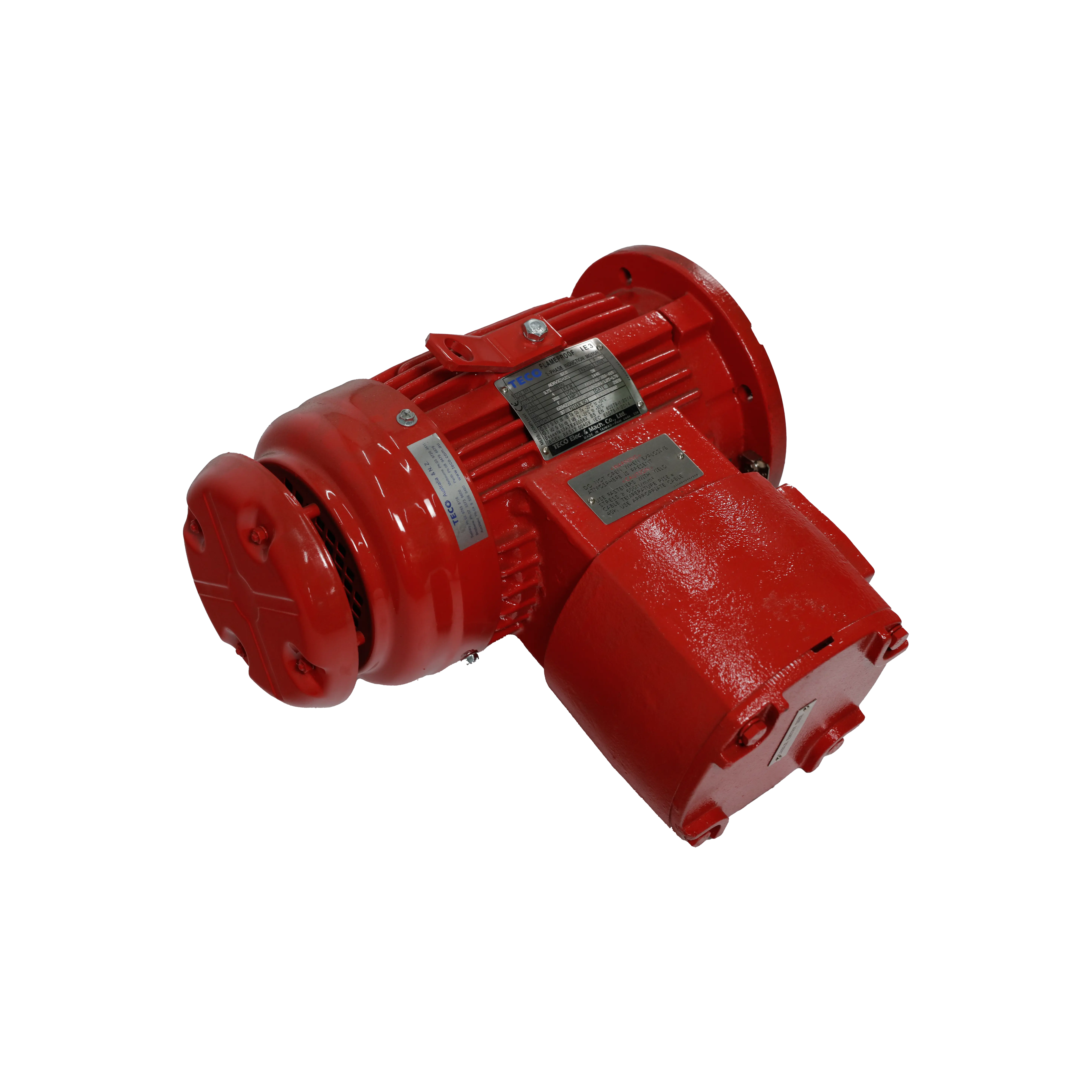

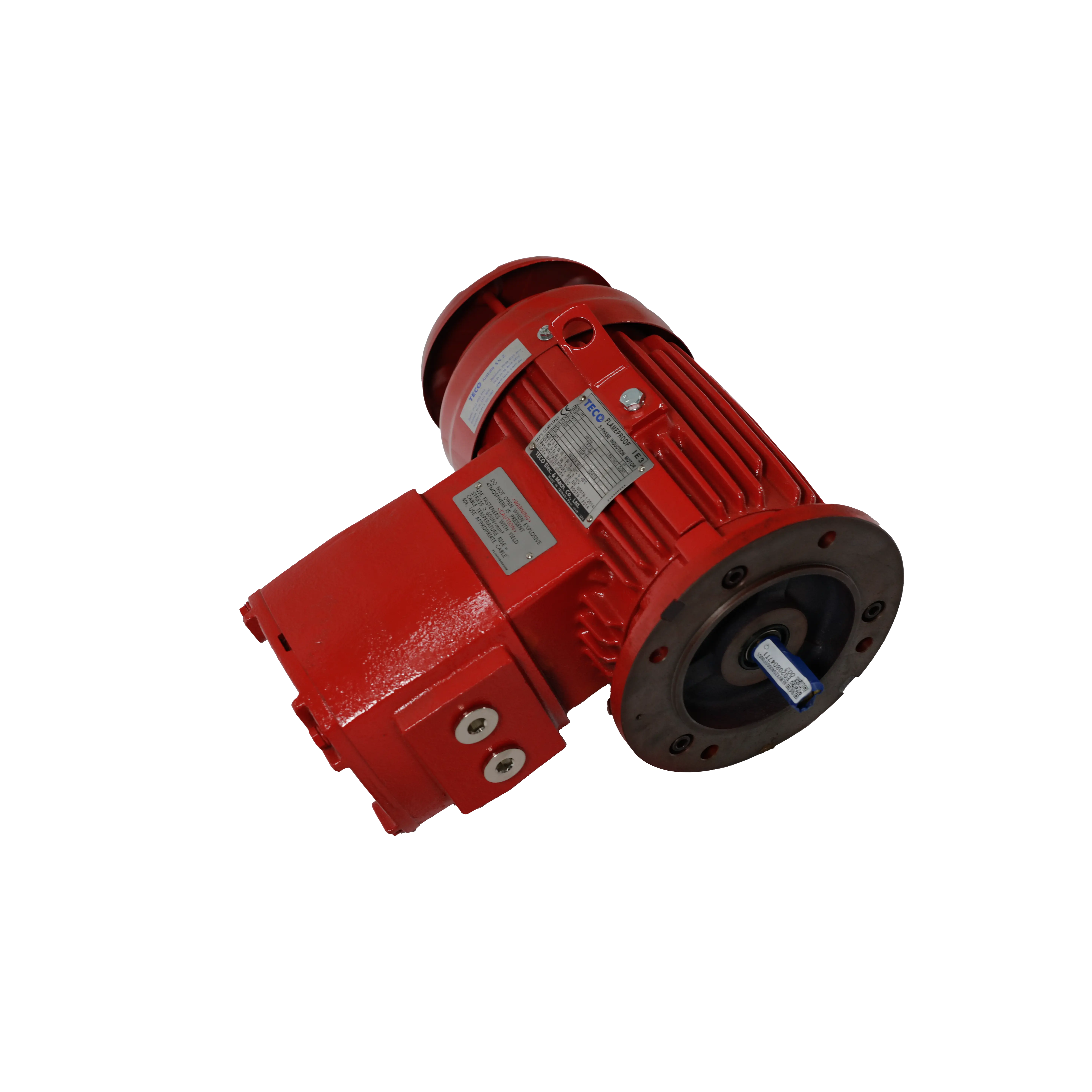

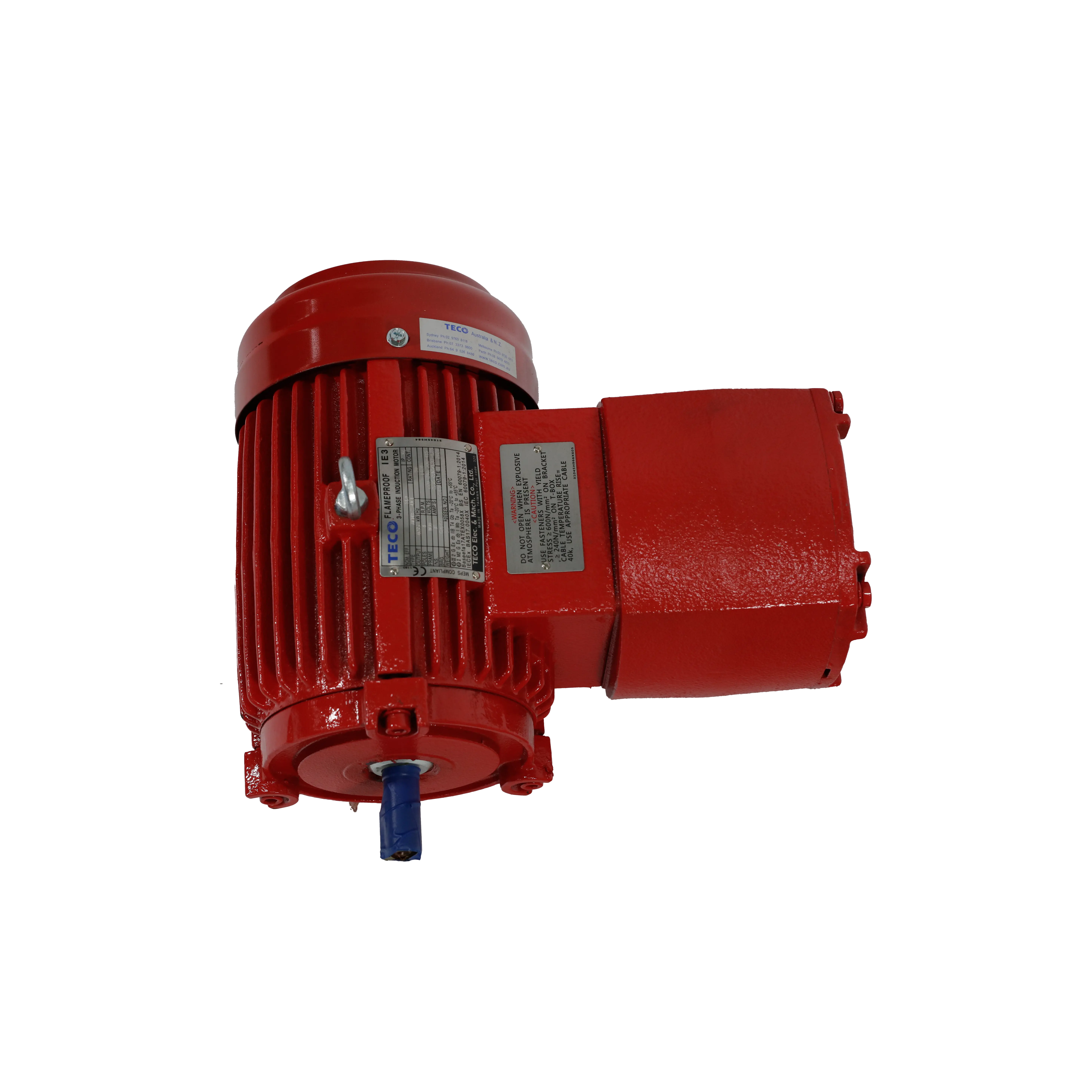

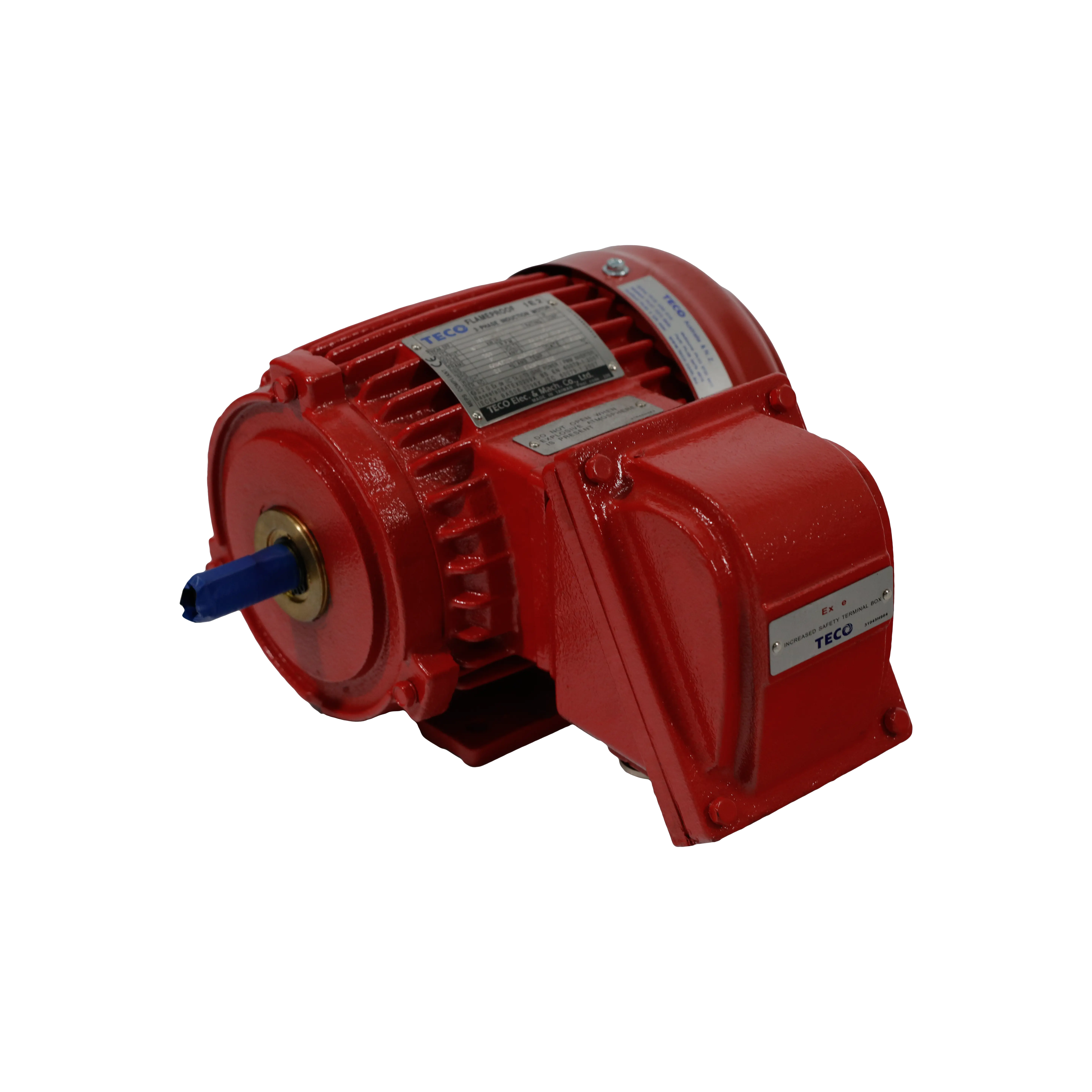

TECO IE3 Flameproof (Exd) – Safe, Efficient, and Reliable Solutions for Hazardous Environments, IP56 Protection TECO IE3 Flameproof (Ex d) Total Enclosed Fan Cooled Motor is designed with safety certifications read more…

  • IEC Ex and ATEX Certified with certification available as :
  • Ex d (Flameproof Motor and Terminal Box)
  • Ex db I Mb and Ex db IIB T4* Gb both at ambient range -20 deg C to 55 deg for frames 80 to 280
  • Ex db I Mb and Ex db IIC T4* Gb both at ambient range -20 deg C to 55 deg for frame 315 only
  • *T4 for converter supply (PWM Converter , Inverter) . Condition of safe use is mandatory connection of thermistors.
  • Metric frame motors to AS1359, AS/BS frame allocation
  • D80 to D315 frames
  • 0.75 kW to 7.5 kW (Stock) or up to 110kW (Built to Order)
  • Totally Enclosed Fan Cooled (IC411)
  • Motor type AEMBXZ/AEMVXZ , meets or exceeds AS1359.5 Minimum Efficiency Performance Standard, table B2             (a number of motors meet or exceed high efficiency to table B3)
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Highest quality insulation system utilizing Class H materials
  • Low temperature rise for substantial thermal reserve
  • Continuous rated, duty type S1
  • Low noise level
  • IP56 protection
  • Motors available painted R13 red (AS2700) off the shelf.
  • Cast Iron construction with side mounted terminal box
  • Mountings available – Foot, Foot and flange (D type only), Flange (D type only)
  • MAX Ex Brake Motors
  • 2 year warranty​
  • Ensures reliable performance in hazardous environments
  • Meets international safety certifications for hazardous areas (Exd)
  • Wide range of certifications available based on temperature range and frame size
  • Compatible with metric frames and AS/BS frame allocation standards
  • Suitable for various frame sizes, providing flexibility in motor selection
  • Offers a range of power outputs to meet different application requirements
  • Provides efficient cooling with a Totally Enclosed Fan Cooled design
  • Uses high-quality insulation materials for enhanced durability
  • Suitable for continuous operation under normal working conditions
  • Reduces noise levels for a quieter working environment

No software downloads.

Download Drawings

Listing can be filtered by using the Motor Selector

Frame Size PDF Drawings CAD Drawings 3D Drawings
80 PDF Drawing
90L PDF Drawing
100L PDF Drawing
112M PDF Drawing
132M PDF Drawing
132S PDF Drawing
160L-2P PDF Drawing
160L-4P PDF Drawing
160M-4P PDF Drawing
180LC-4P PDF Drawing
180MA-2P PDF Drawing
180MC-4P PDF Drawing
200LA-30kW2P PDF Drawing
200LA-37kW2P PDF Drawing
200LC-4P PDF Drawing
225MA-2P PDF Drawing
225MC-4P PDF Drawing
225SC-4P PDF Drawing
250MA-2P PDF Drawing
250MC-4P PDF Drawing
250SA-2P PDF Drawing
250SC-4P PDF Drawing
280MA-2P PDF Drawing
280MC-4P PDF Drawing
280SA-2P PDF Drawing
280SC-4P PDF Drawing

Download Datasheets

Listing can be filtered by using the Motor Selector

KW Rating Voltage Phases No of Poles Frame Datasheet PDF
0.75 415 3 2 80 Datasheet PDF
0.75 415 3 4 80 Datasheet PDF
0.75 415 3 6 90L Datasheet PDF
0.75 415 3 8 100L Datasheet PDF
1.1 415 3 2 80 Datasheet PDF
1.1 415 3 4 90L Datasheet PDF
1.1 415 3 6 90L Datasheet PDF
1.1 415 3 8 100L Datasheet PDF
1.5 415 3 2 90L Datasheet PDF
1.5 415 3 4 90L Datasheet PDF
1.5 415 3 6 100L Datasheet PDF
1.5 415 3 8 112M Datasheet PDF
2.2 415 3 2 90L Datasheet PDF
2.2 415 3 4 100L Datasheet PDF
2.2 415 3 6 112M Datasheet PDF
2.2 415 3 8 132S Datasheet PDF
3 415 3 2 100L Datasheet PDF
3 415 3 4 100L Datasheet PDF
3 415 3 6 132S Datasheet PDF
3 415 3 8 132M Datasheet PDF
4 415 3 2 112M Datasheet PDF
4 415 3 4 112M Datasheet PDF
4 415 3 6 132M Datasheet PDF
4 415 3 8 160M Datasheet PDF
5.5 415 3 2 132S Datasheet PDF
5.5 415 3 4 132S Datasheet PDF
5.5 415 3 6 132M Datasheet PDF
5.5 415 3 8 160M Datasheet PDF
7.5 415 3 2 132S Datasheet PDF
7.5 415 3 4 132M Datasheet PDF
7.5 415 3 6 160M Datasheet PDF
7.5 415 3 8 160L Datasheet PDF
11 415 3 2 160M Datasheet PDF
11 415 3 4 160M-4P Datasheet PDF
11 415 3 6 160L Datasheet PDF
11 415 3 8 180LC Datasheet PDF
15 415 3 2 160M Datasheet PDF
15 415 3 4 160L-4P Datasheet PDF
15 415 3 6 180LC Datasheet PDF
15 415 3 8 200LC Datasheet PDF
18.5 415 3 2 160L-2P Datasheet PDF
18.5 415 3 4 180MC-4P Datasheet PDF
18.5 415 3 6 200LC Datasheet PDF
18.5 415 3 8 225SC Datasheet PDF
22 415 3 2 180MA-2P Datasheet PDF
22 415 3 4 180LC-4P Datasheet PDF
22 415 3 6 200LC Datasheet PDF
22 415 3 8 225MC Datasheet PDF
30 415 3 2 200LA-30kW2P Datasheet PDF
30 415 3 4 200LC-4P Datasheet PDF
30 415 3 6 225MC Datasheet PDF
30 415 3 8 250SC Datasheet PDF
37 415 3 2 200LA-37kW2P Datasheet PDF
37 415 3 4 225SC-4P Datasheet PDF
37 415 3 6 250SC Datasheet PDF
37 415 3 8 250MC Datasheet PDF
45 415 3 2 225MA-2P Datasheet PDF
45 415 3 4 225MC-4P Datasheet PDF
45 415 3 6 250MC Datasheet PDF
45 415 3 8 280SC Datasheet PDF
55 415 3 2 250SA-2P Datasheet PDF
55 415 3 4 250SC-4P Datasheet PDF
55 415 3 6 280SC Datasheet PDF
55 415 3 8 280MC Datasheet PDF
75 415 3 2 250MA-2P Datasheet PDF
75 415 3 4 250MC-4P Datasheet PDF
75 415 3 6 280MC Datasheet PDF
75 415 3 8 315MC Datasheet PDF
90 415 3 2 280SA-2P Datasheet PDF
90 415 3 4 280SC-4P Datasheet PDF
90 415 3 6 315MC Datasheet PDF
90 415 3 8 315MC Datasheet PDF
110 415 3 2 280MA-2P Datasheet PDF
110 415 3 4 280MC-4P Datasheet PDF
110 415 3 6 315MC Datasheet PDF
132 415 3 2 315MA Datasheet PDF
132 415 3 4 315MC Datasheet PDF
150 415 3 2 315MA Datasheet PDF
150 415 3 4 315MC Datasheet PDF
160 415 3 2 315MA Datasheet PDF
160 415 3 4 315MC Datasheet PDF
185 415 3 2 315MA Datasheet PDF
185 415 3 4 315MC Datasheet PDF

Features

  • IEC Ex and ATEX Certified with certification available as :
  • Ex d (Flameproof Motor and Terminal Box)
  • Ex db I Mb and Ex db IIB T4* Gb both at ambient range -20 deg C to 55 deg for frames 80 to 280
  • Ex db I Mb and Ex db IIC T4* Gb both at ambient range -20 deg C to 55 deg for frame 315 only
  • *T4 for converter supply (PWM Converter , Inverter) . Condition of safe use is mandatory connection of thermistors.
  • Metric frame motors to AS1359, AS/BS frame allocation
  • D80 to D315 frames
  • 0.75 kW to 7.5 kW (Stock) or up to 110kW (Built to Order)
  • Totally Enclosed Fan Cooled (IC411)
  • Motor type AEMBXZ/AEMVXZ , meets or exceeds AS1359.5 Minimum Efficiency Performance Standard, table B2             (a number of motors meet or exceed high efficiency to table B3)
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Highest quality insulation system utilizing Class H materials
  • Low temperature rise for substantial thermal reserve
  • Continuous rated, duty type S1
  • Low noise level
  • IP56 protection
  • Motors available painted R13 red (AS2700) off the shelf.
  • Cast Iron construction with side mounted terminal box
  • Mountings available – Foot, Foot and flange (D type only), Flange (D type only)
  • MAX Ex Brake Motors
  • 2 year warranty​

Benefits

  • Ensures reliable performance in hazardous environments
  • Meets international safety certifications for hazardous areas (Exd)
  • Wide range of certifications available based on temperature range and frame size
  • Compatible with metric frames and AS/BS frame allocation standards
  • Suitable for various frame sizes, providing flexibility in motor selection
  • Offers a range of power outputs to meet different application requirements
  • Provides efficient cooling with a Totally Enclosed Fan Cooled design
  • Uses high-quality insulation materials for enhanced durability
  • Suitable for continuous operation under normal working conditions
  • Reduces noise levels for a quieter working environment

Software

No software downloads.

Drawings

Download Drawings

Listing can be filtered by using the Motor Selector

Frame Size PDF Drawings CAD Drawings 3D Drawings
80 PDF Drawing
90L PDF Drawing
100L PDF Drawing
112M PDF Drawing
132M PDF Drawing
132S PDF Drawing
160L-2P PDF Drawing
160L-4P PDF Drawing
160M-4P PDF Drawing
180LC-4P PDF Drawing
180MA-2P PDF Drawing
180MC-4P PDF Drawing
200LA-30kW2P PDF Drawing
200LA-37kW2P PDF Drawing
200LC-4P PDF Drawing
225MA-2P PDF Drawing
225MC-4P PDF Drawing
225SC-4P PDF Drawing
250MA-2P PDF Drawing
250MC-4P PDF Drawing
250SA-2P PDF Drawing
250SC-4P PDF Drawing
280MA-2P PDF Drawing
280MC-4P PDF Drawing
280SA-2P PDF Drawing
280SC-4P PDF Drawing

Data Sheet

Download Datasheets

Listing can be filtered by using the Motor Selector

KW Rating Voltage Phases No of Poles Frame Datasheet PDF
0.75 415 3 2 80 Datasheet PDF
0.75 415 3 4 80 Datasheet PDF
0.75 415 3 6 90L Datasheet PDF
0.75 415 3 8 100L Datasheet PDF
1.1 415 3 2 80 Datasheet PDF
1.1 415 3 4 90L Datasheet PDF
1.1 415 3 6 90L Datasheet PDF
1.1 415 3 8 100L Datasheet PDF
1.5 415 3 2 90L Datasheet PDF
1.5 415 3 4 90L Datasheet PDF
1.5 415 3 6 100L Datasheet PDF
1.5 415 3 8 112M Datasheet PDF
2.2 415 3 2 90L Datasheet PDF
2.2 415 3 4 100L Datasheet PDF
2.2 415 3 6 112M Datasheet PDF
2.2 415 3 8 132S Datasheet PDF
3 415 3 2 100L Datasheet PDF
3 415 3 4 100L Datasheet PDF
3 415 3 6 132S Datasheet PDF
3 415 3 8 132M Datasheet PDF
4 415 3 2 112M Datasheet PDF
4 415 3 4 112M Datasheet PDF
4 415 3 6 132M Datasheet PDF
4 415 3 8 160M Datasheet PDF
5.5 415 3 2 132S Datasheet PDF
5.5 415 3 4 132S Datasheet PDF
5.5 415 3 6 132M Datasheet PDF
5.5 415 3 8 160M Datasheet PDF
7.5 415 3 2 132S Datasheet PDF
7.5 415 3 4 132M Datasheet PDF
7.5 415 3 6 160M Datasheet PDF
7.5 415 3 8 160L Datasheet PDF
11 415 3 2 160M Datasheet PDF
11 415 3 4 160M-4P Datasheet PDF
11 415 3 6 160L Datasheet PDF
11 415 3 8 180LC Datasheet PDF
15 415 3 2 160M Datasheet PDF
15 415 3 4 160L-4P Datasheet PDF
15 415 3 6 180LC Datasheet PDF
15 415 3 8 200LC Datasheet PDF
18.5 415 3 2 160L-2P Datasheet PDF
18.5 415 3 4 180MC-4P Datasheet PDF
18.5 415 3 6 200LC Datasheet PDF
18.5 415 3 8 225SC Datasheet PDF
22 415 3 2 180MA-2P Datasheet PDF
22 415 3 4 180LC-4P Datasheet PDF
22 415 3 6 200LC Datasheet PDF
22 415 3 8 225MC Datasheet PDF
30 415 3 2 200LA-30kW2P Datasheet PDF
30 415 3 4 200LC-4P Datasheet PDF
30 415 3 6 225MC Datasheet PDF
30 415 3 8 250SC Datasheet PDF
37 415 3 2 200LA-37kW2P Datasheet PDF
37 415 3 4 225SC-4P Datasheet PDF
37 415 3 6 250SC Datasheet PDF
37 415 3 8 250MC Datasheet PDF
45 415 3 2 225MA-2P Datasheet PDF
45 415 3 4 225MC-4P Datasheet PDF
45 415 3 6 250MC Datasheet PDF
45 415 3 8 280SC Datasheet PDF
55 415 3 2 250SA-2P Datasheet PDF
55 415 3 4 250SC-4P Datasheet PDF
55 415 3 6 280SC Datasheet PDF
55 415 3 8 280MC Datasheet PDF
75 415 3 2 250MA-2P Datasheet PDF
75 415 3 4 250MC-4P Datasheet PDF
75 415 3 6 280MC Datasheet PDF
75 415 3 8 315MC Datasheet PDF
90 415 3 2 280SA-2P Datasheet PDF
90 415 3 4 280SC-4P Datasheet PDF
90 415 3 6 315MC Datasheet PDF
90 415 3 8 315MC Datasheet PDF
110 415 3 2 280MA-2P Datasheet PDF
110 415 3 4 280MC-4P Datasheet PDF
110 415 3 6 315MC Datasheet PDF
132 415 3 2 315MA Datasheet PDF
132 415 3 4 315MC Datasheet PDF
150 415 3 2 315MA Datasheet PDF
150 415 3 4 315MC Datasheet PDF
160 415 3 2 315MA Datasheet PDF
160 415 3 4 315MC Datasheet PDF
185 415 3 2 315MA Datasheet PDF
185 415 3 4 315MC Datasheet PDF
