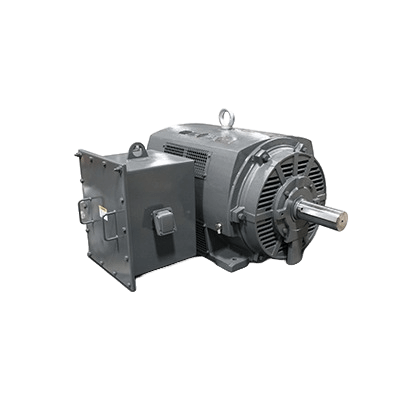

TECO Open Drip Proof are custom designed to each customer’s specific application. Because of their design versatility and high operating efficiences, TECO Motors are the logical choice for a multitude read more…
|
Product Overview
|
|
| Output | 300 up to 15,000kW |
| Number of Poles: | 2 to 12 |
| Cooling method: | Open self-ventilated |
| Degree of Protection: | IP20 to IP24 |
| Frames: | 355 up to 1000 |
| Ambient temperature: | 40 °C |
| Elevation: | 1000m above sea level |
| Service factor: | 1.0 @ 40 deg C ambient |
| Mounting: | IM1001 |
| Voltages: | Up to 13,800V |
| Insulation Class: | “F” insulation (ΔT = 80K) |
| Continuous duty: | S1 |
| Design: | N |
| Thermal protection: | As per customer specification |
| Bearings: | Anti-friction Bearings , Sleeve bearings |
| Frame Material: | Fabricated Steeel |
| Color: | As per customer specification |
|
Options Available
|
|
| Altitude above 1000 m (on request) | |
| Aluminum, copper or brass rotor | |
| Ambient temperature above 40 °C | |
| Base: rail, sliding base, extended feet, rebuilt feet, anchorage plate | |
| Bearing thermometer with gauge with/without contacts | |
| Cable gland in the terminal box entrance | |
| Class of insulation: H | |
| Cooling: Forced ventilated, Self-ventilated by ducts, Air-to-water heat exchanger, WPI, WPII | |
| CT for differential and integral protection | |
| Electrically insulated bearing | |
| Encoder | |
| Grounding brush on drive end bearing | |
| Independent hydraulic oil circulation system for sleeve bearing | |
| Mountings: Vertical, Horizontal, Foot and Flange, Flange, NEMA Standard | |
| Noise suppressor in the air inlet and outlet | |
| Non-reversion ratchet | |
| Multiple accessory terminal boxes | |
| Power factor correction capacitors | |
| Protection against voltage surge: Lighting arrestors and Capacitors | |
| Service Factor: 1.15 | |
| Shaft: Special dimensions, double shaft end, tapered, hollow, special steel | |
| Signal transducer | |
| Sleeve bearing | |
| Special balance | |
| Special bearing (overdesigned) for axial or radial thrust | |
| Special painting | |
| Steel welded terminal box in different sizes, based on internal available space | |
| Temperature detector: Thermistor (PTC or NTC) | |
| Temperature detector: Thermostat (Bimetallic) | |
| Two energized power terminal boxes | |
| VFD application | |
| Vibration detector | |
