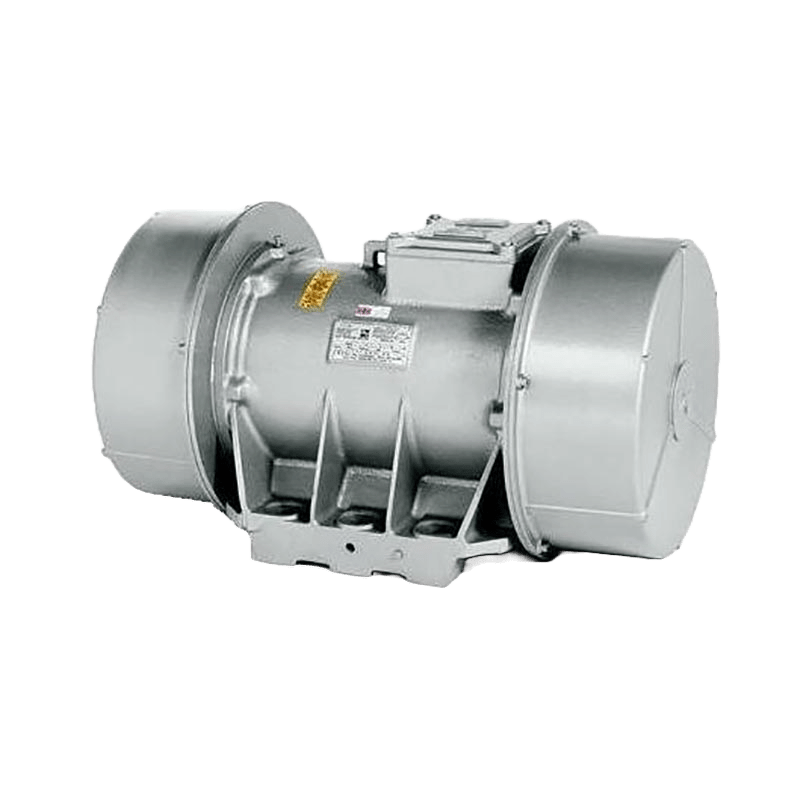

Invicta Blz Base Mounted Vibrators

• Electric rotary vibrator with adjustable out of balance weights (0-100%) at both ends
• Base mounted position, IM1081
• Squirrel Cage Induction Type to BS4999 / IEC60034
• Total enclosed, IC410, IP66
• BLz base mount vibrator motors are Dust Ignition Protection, ExtD A21 IP66, IEC certified ExSIR 04.007, also ATEC certified for Zone 21 & 22.
• Stocked as 240 Volt Delta, 415 Volt Star, 3 Phase 50 Hz (other supplies available on request)
• DOL starting, Duty S1 continuous rated or *VVVF Inverter duty (subject to overspeed limitations)
• Class F insulation with class B temperature rise in a 40°C ambient
• Integral cast top mounted terminal box
• Standard paint with finish colour Hammertone Silver

• Precise Control achieve the desired level of intensity from 0% to 100%.
• Sturdy and Stable providing a reliable foundation for optimal performance.
• High Performance in various applications.
• Enhanced Protection against dust and ensures long-lasting performance in challenging environments.
• Safety and Compliance ensuring safety, reliability, and regulatory compliance.
• Versatile Starting and Duty Options providing flexibility for various applications.
• Efficient and Reliable Operation
• Streamlined Installation and Maintenance ensuring convenience and efficiency.
• Aesthetically Pleasing enhancing the overall appearance of your equipment.
